Universal Allison DOC® (Allison DOC For PC - Service Tool) . New! Version 14.0 has these exciting new features:
Include The Highest Activation Level -Allison Engineer Level !
- Authorized Reprogramming Highest Level !
- Full Authorized Tac-Data
Includes DOC For PC H 40/50 EP !
The Installation And Activision will Go Through Teamview Support ,
After You Download The Files Or Got Your DVD's We will Connect To your Pc
And Install The Software For you !!- Free Of Charge !
Supports 5th Generation Transmission controls.
5th Generation Troubleshooting Manuals (1k2k and 3k4k).
New Technician's Library.
Ability to reprogram certain 5th Gen Customer Modifiable Contants (CMCs) that previously required a new calibration (password controlled).
Universal Allison DOC® Features:
Universal Allison DOC® Product combines DOC For PC, DOC For PC H 40/50 EP and DOC For Fleets.
A valid license is necessary to enable each product offering.
New consistent user interface for all products based on the DOC V9.0.0 release.
Renames “Collect Engine Parameters” to “Display J1939 Data” in the 4th Gen TCM Connection Options.
Expands J1939 Data grid to add features for engine, brakes and body controllers.
Updates features for CEC3 Off Highway 4th Generation Transmission Controller.
Adds capability to detect and connect to J1939 500K.
The DG Technologies DPA 5 Kit is the best communication interface for this software.
Updates Adaptive Flag labels for WTEC2 and WTEC3.
Updates Retarder Available/Status logic parameter and other Autodetect parameter logic.
Updates utility to eliminate error messages that occur while attempting to print reports or reprogram CMCs.
The Allison DOC® (Diagnostic Optimized Connection) For PC–Service Tool is a diagnostic system designed for use with Allison’s 3000/4000 Product Families transmissions, 1000/2000 Product Families transmissions, and transmissions using CEC3/CEC2/CEC1 controls.
This PC-based diagnostic program is capable of communicating with Allison 4th Generation Control System Module TCMs, WTEC II and WTEC III Electronic Control Units (ECU), 1000/2000 (Pre-Allison 4th Generation Controls) TCMs, CEC3, CEC2, and CEC1 Electronic Control Units (ECU).
Allison DOC® For PC–Service Tool performs the following:
Monitors 3000/4000 Product Families Transmission Control Module (TCM) data.
Monitors 1000/2000 Product Families Transmission Control Module (TCM) data.
Monitors CEC2 and CEC3 (Off-Highway) data.
Monitors CEC (ATEC) Electronic Control Units (ECU) data using a proprietary protocol and the Noregon Wireless/USB Translator - All Allison Products device.
Displays multiple transmission parameters.

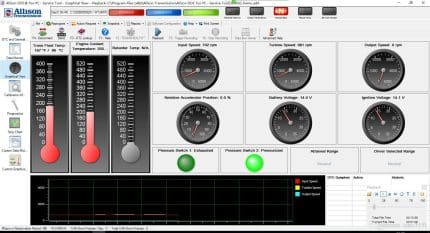

Displays a graphical instrument panel with analog and digital gauges.
Displays a graphical strip chart.
Records and plays back diagnostic sessions.
Prints diagnostic reports.

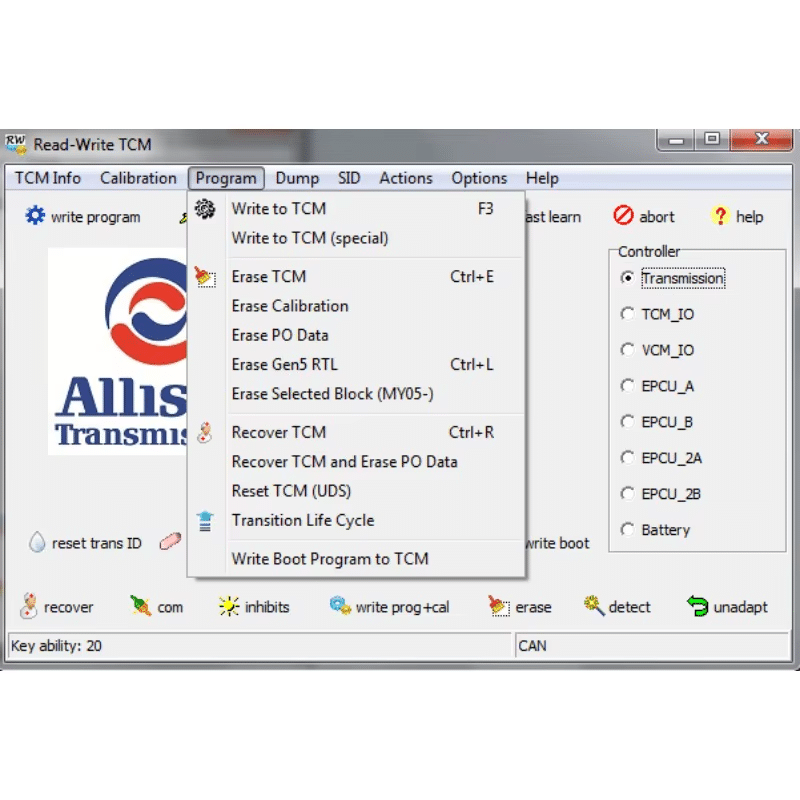

Reprograms selected TCM parameters (requires completion of Allison Transmission training).
Allison DOC® For PC—Service Tool provides the following features:
Security measures to control reprogramming TCM/ECU parameters.
Integrated Help with training videos.
Diagnostic Trouble Code information with a direct link to 3000/4000 Product Families Troubleshooting Manuals.
Diagnostic Trouble Code information with a direct link to the 1000/2000 Product Families Troubleshooting Manual.
Diagnostic Trouble Code information with a direct link to CEC 2 Troubleshooting Manuals.
A demo mode using prerecorded data.
SmartConnect for detecting the PC-to-vehicle translation device and communication link.
Communication troubleshooting wizard for those cases where the tool is unable to connect to a control module.
Allison DOC® For PC—Service Tool is compliant with applicable TMC Recommended Practices, SAE Standards, and CE Standards.
Allison DOC® For PC—Service Tool is RP1210A compliant.
Operating System and PC Requirements:
Microsoft® Windows XP® Professional, Windows Vista® Home Basic (or better), or Windows 7®
20 GB Hard Drive, (40 GB or greater recommended)
3 GB free hard drive space required to install the program (after software installation, the operating system requires sufficient free hard disk space to run the program)
1.3 GHz (2GHz recommended)
1 GB of RAM system memory (2 GB recommended)
Monitor capable of supporting a resolution of 1280x768 or higher recommended
One available USB port - USB 1.1 (USB 2.0 recommended)
DVD-ROM or USB port depending on installation media
Full administrative privileges are required to install, use, and update the Allison DOC® For PC–Service Tool
Internet broadband connection capability (Internet Explorer® 6 or greater) for activation/reactivation, receiving updates and file downloads
- Model: 90020
- Manufactured by: Allison Transmission
